OSDP.Net.Model.CommandData.ReaderLedControls Class Reference

Command data to control the color of LEDs. More...

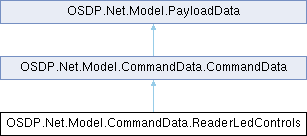

Inheritance diagram for OSDP.Net.Model.CommandData.ReaderLedControls:

Public Member Functions
	ReaderLedControls (IEnumerable< ReaderLedControl > controls)
	Initializes a new instance of the ReaderLedControls class.
override ReadOnlySpan< byte >	SecurityControlBlock ()
override byte[]	BuildData ()
override string	ToString ()
Public Member Functions inherited from OSDP.Net.Model.PayloadData
byte[]	BuildData ()
	Converts the payload into a byte array to be sent over the wire.
ReadOnlySpan< byte >	SecurityControlBlock ()
	Retrieves the security control block for a specific command data type.
virtual void	CustomMessageUpdate (Span< byte > messageBuffer)
	Updates the message data before sending in the specified byte buffer.

Static Public Member Functions
static ReaderLedControls	ParseData (ReadOnlySpan< byte > payloadData)
	Parses the message payload bytes.

Properties
IEnumerable< ReaderLedControl >	Controls [get]
	One or more commands to control the LEDs of a PD.
override CommandType	CommandType [get]
override byte	Code [get]
Properties inherited from OSDP.Net.Model.CommandData.CommandData
CommandType	CommandType [get]
	Message command code.
Properties inherited from OSDP.Net.Model.PayloadData
byte	Code [get]
	Gets the command or reply code byte value that represent the type of data.
virtual bool	IsSecurityInitialization [get]
	Gets a value indicating whether the security initialization is performed by this payload.

Additional Inherited Members
Static Protected Member Functions inherited from OSDP.Net.Model.CommandData.CommandData
static T[]	SplitData< T > (int size, Func< byte[], T > parseDataFunction, ReadOnlySpan< byte > payloadData)
	Splits data into multiple elements of type T based on a specified size.

Detailed Description

Command data to control the color of LEDs.

Definition at line 13 of file ReaderLedControls.cs.

Constructor & Destructor Documentation

ReaderLedControls()

OSDP.Net.Model.CommandData.ReaderLedControls.ReaderLedControls ( IEnumerable< ReaderLedControl > controls )

inline

Initializes a new instance of the ReaderLedControls class.

Parameters

controls

The reader LED controls to be updated. It can't be null and requires at least one in the collection.

Definition at line 19 of file ReaderLedControls.cs.

References Controls.

Referenced by ParseData().

Member Function Documentation

BuildData()

override byte[] OSDP.Net.Model.CommandData.ReaderLedControls.BuildData ( )

inline

Definition at line 49 of file ReaderLedControls.cs.

References Controls.

ParseData()

ReaderLedControls OSDP.Net.Model.CommandData.ReaderLedControls.ParseData ( ReadOnlySpan< byte > payloadData )

inlinestatic

Parses the message payload bytes.

Parameters

payloadData

Message payload as bytes

Returns

An instance of ReaderLedControls representing the message payload

Definition at line 63 of file ReaderLedControls.cs.

References OSDP.Net.Model.CommandData.ReaderLedControl.ParseData(), and ReaderLedControls().

Referenced by OSDP.Net.Device.EnqueuePollReply(), and OSDP.Net.Model.Packet.ParsePayloadData().

SecurityControlBlock()

override ReadOnlySpan< byte > OSDP.Net.Model.CommandData.ReaderLedControls.SecurityControlBlock ( )

inline

Definition at line 43 of file ReaderLedControls.cs.

ToString()

override string OSDP.Net.Model.CommandData.ReaderLedControls.ToString ( )

inline

Definition at line 69 of file ReaderLedControls.cs.

References Controls.

Property Documentation

Code

override byte OSDP.Net.Model.CommandData.ReaderLedControls.Code

get

Definition at line 40 of file ReaderLedControls.cs.

CommandType

override CommandType OSDP.Net.Model.CommandData.ReaderLedControls.CommandType

get

Definition at line 37 of file ReaderLedControls.cs.

Controls

IEnumerable<ReaderLedControl> OSDP.Net.Model.CommandData.ReaderLedControls.Controls

get

One or more commands to control the LEDs of a PD.

Definition at line 34 of file ReaderLedControls.cs.

Referenced by BuildData(), ReaderLedControls(), and ToString().

---

The documentation for this class was generated from the following file:

• OSDP.Net/Model/CommandData/ReaderLedControls.cs
