TCP server OSDP connection that allows a ControlPanel (ACU) to act as a TCP server, accepting connections from OSDP devices. More...

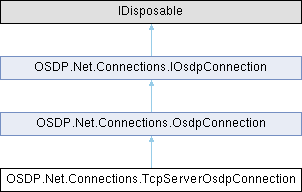

Inheritance diagram for OSDP.Net.Connections.TcpServerOsdpConnection:

Public Member Functions

TcpServerOsdpConnection (int portNumber, int baudRate, ILoggerFactory loggerFactory=null)

Initializes a new instance of the TcpServerOsdpConnection class.

override async Task Open ()

Open the connection for communications.

override Task Close ()

Close the connection for communications.

override async Task WriteAsync (byte[] buffer)

Write to connection.

Parameters

buffer Array of bytes to write

override async Task< int > ReadAsync (byte[] buffer, CancellationToken token)

Read from connection.

Parameters

buffer	Array of bytes to read
token	Cancellation token to end reading of bytes

Returns: Number of actual bytes read

override string ToString ()

Public Member Functions inherited from OSDP.Net.Connections.OsdpConnection

Task Close ()

Close the connection for communications.

Task Open ()

Open the connection for communications.

Task< int > ReadAsync (byte[] buffer, CancellationToken token)

Read from connection.

Parameters

buffer	Array of bytes to read
token	Cancellation token to end reading of bytes

Returns: Number of actual bytes read

Task WriteAsync (byte[] buffer)

Write to connection.

Parameters

buffer Array of bytes to write

void Dispose ()

Protected Member Functions
override void	Dispose (bool disposing)
	Disposes the OsdpConnection instance.This method is responsible for releasing any resources used by the OsdpConnection instance. It calls the Close method to close the connection if it is open and sets the _disposedValue field to true to indicate that the instance has been disposed.
Protected Member Functions inherited from OSDP.Net.Connections.OsdpConnection
	OsdpConnection (int baudRate)
	Creates an instance of OsdpConnection.

Properties
override bool	IsOpen `[get]`
	Is the connection open and ready to communicate.
Properties inherited from OSDP.Net.Connections.OsdpConnection
int	BaudRate `[get, protected set]`
	Speed of the connection.
virtual bool	IsOpen `[get, protected set]`
	Is the connection open and ready to communicate.
TimeSpan	ReplyTimeout = TimeSpan.FromMilliseconds(200) `[get, set]`
	Timeout value waiting for a reply.

Detailed Description

TCP server OSDP connection that allows a ControlPanel (ACU) to act as a TCP server, accepting connections from OSDP devices.

This class combines TCP listening and connection handling in a single IOsdpConnection implementation, making it suitable for use with ControlPanel instances that need to accept incoming device connections. For scenarios where devices (PDs) need to accept ACU connections, use TcpConnectionListener instead.

Definition at line 19 of file TcpServerOsdpConnection.cs.

Constructor & Destructor Documentation

◆ TcpServerOsdpConnection()

OSDP.Net.Connections.TcpServerOsdpConnection.TcpServerOsdpConnection	(	int	portNumber,
		int	baudRate,
		ILoggerFactory	loggerFactory = null )

inline

Initializes a new instance of the TcpServerOsdpConnection class.

Parameters

portNumber	The TCP port number to listen on.
baudRate	The simulated baud rate for OSDP communication timing.
loggerFactory	Optional logger factory for diagnostic logging.

Definition at line 32 of file TcpServerOsdpConnection.cs.

References TcpServerOsdpConnection().

Referenced by TcpServerOsdpConnection().

Member Function Documentation

◆ Close()

override Task OSDP.Net.Connections.TcpServerOsdpConnection.Close ( )

inline

Close the connection for communications.

Implements OSDP.Net.Connections.IOsdpConnection.

Definition at line 73 of file TcpServerOsdpConnection.cs.

Referenced by Dispose(), and Open().

◆ Dispose()

override void OSDP.Net.Connections.TcpServerOsdpConnection.Dispose ( bool disposing )

inlineprotectedvirtual

Disposes the OsdpConnection instance.This method is responsible for releasing any resources used by the OsdpConnection instance. It calls the Close method to close the connection if it is open and sets the _disposedValue field to true to indicate that the instance has been disposed.

Reimplemented from OSDP.Net.Connections.OsdpConnection.

Definition at line 152 of file TcpServerOsdpConnection.cs.

References Close().
