OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection Class Reference

Read-only serial port connection for passive monitoring of OSDP traffic. More...

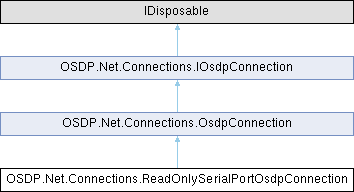

Inheritance diagram for OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection:

Public Member Functions
	ReadOnlySerialPortOsdpConnection (string portName, int baudRate)
	Initializes a new instance of the ReadOnlySerialPortOsdpConnection class.
override Task	Open ()
	Open the connection for communications.
override Task	Close ()
	Close the connection for communications.
override Task	WriteAsync (byte[] buffer)
	Write to connection. Parameters buffer Array of bytes to write Exceptions NotSupportedException This connection is read-only and does not support write operations.
override async Task< int >	ReadAsync (byte[] buffer, CancellationToken token)
	Read from connection. Parameters buffer Array of bytes to read token Cancellation token to end reading of bytes Returns Number of actual bytes read
override string	ToString ()
Public Member Functions inherited from OSDP.Net.Connections.OsdpConnection
Task	Close ()
	Close the connection for communications.
Task	Open ()
	Open the connection for communications.
Task< int >	ReadAsync (byte[] buffer, CancellationToken token)
	Read from connection. Parameters buffer Array of bytes to read token Cancellation token to end reading of bytes Returns Number of actual bytes read
Task	WriteAsync (byte[] buffer)
	Write to connection. Parameters buffer Array of bytes to write
void	Dispose ()

Additional Inherited Members
Protected Member Functions inherited from OSDP.Net.Connections.OsdpConnection
	OsdpConnection (int baudRate)
	Creates an instance of OsdpConnection.
virtual void	Dispose (bool disposing)
	Disposes the OsdpConnection instance.
Properties inherited from OSDP.Net.Connections.OsdpConnection
int	BaudRate [get, protected set]
	Speed of the connection.
virtual bool	IsOpen [get, protected set]
	Is the connection open and ready to communicate.
TimeSpan	ReplyTimeout = TimeSpan.FromMilliseconds(200) [get, set]
	Timeout value waiting for a reply.

Detailed Description

Read-only serial port connection for passive monitoring of OSDP traffic.

This connection only supports reading data and will throw NotSupportedException for write operations.

Definition at line 12 of file ReadOnlySerialPortOsdpConnection.cs.

Constructor & Destructor Documentation

ReadOnlySerialPortOsdpConnection()

OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection.ReadOnlySerialPortOsdpConnection ( string portName, int baudRate )

inline

Initializes a new instance of the ReadOnlySerialPortOsdpConnection class.

Parameters

portName	Name of the serial port (e.g., "COM3").
baudRate	The baud rate for the serial connection.

Exceptions

ArgumentNullException

Thrown when portName is null.

Definition at line 23 of file ReadOnlySerialPortOsdpConnection.cs.

Member Function Documentation

Close()

override Task OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection.Close ( )

inline

Close the connection for communications.

Implements OSDP.Net.Connections.IOsdpConnection.

Definition at line 50 of file ReadOnlySerialPortOsdpConnection.cs.

References OSDP.Net.Connections.OsdpConnection.IsOpen.

Open()

override Task OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection.Open ( )

inline

Open the connection for communications.

Implements OSDP.Net.Connections.IOsdpConnection.

Definition at line 29 of file ReadOnlySerialPortOsdpConnection.cs.

References OSDP.Net.Connections.OsdpConnection.BaudRate, and OSDP.Net.Connections.OsdpConnection.IsOpen.

ReadAsync()

override async Task< int > OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection.ReadAsync ( byte[] buffer, CancellationToken token )

inline

Read from connection.

Parameters

buffer	Array of bytes to read
token	Cancellation token to end reading of bytes

Returns

Number of actual bytes read

Implements OSDP.Net.Connections.IOsdpConnection.

Definition at line 74 of file ReadOnlySerialPortOsdpConnection.cs.

References OSDP.Net.Connections.OsdpConnection.IsOpen.

ToString()

override string OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection.ToString ( )

inline

Definition at line 92 of file ReadOnlySerialPortOsdpConnection.cs.

WriteAsync()

override Task OSDP.Net.Connections.ReadOnlySerialPortOsdpConnection.WriteAsync ( byte[] buffer )

inline

Write to connection.

Parameters

buffer

Array of bytes to write

Exceptions

NotSupportedException

This connection is read-only and does not support write operations.

Implements OSDP.Net.Connections.IOsdpConnection.

Definition at line 67 of file ReadOnlySerialPortOsdpConnection.cs.

---

The documentation for this class was generated from the following file:

• OSDP.Net/Connections/ReadOnlySerialPortOsdpConnection.cs
